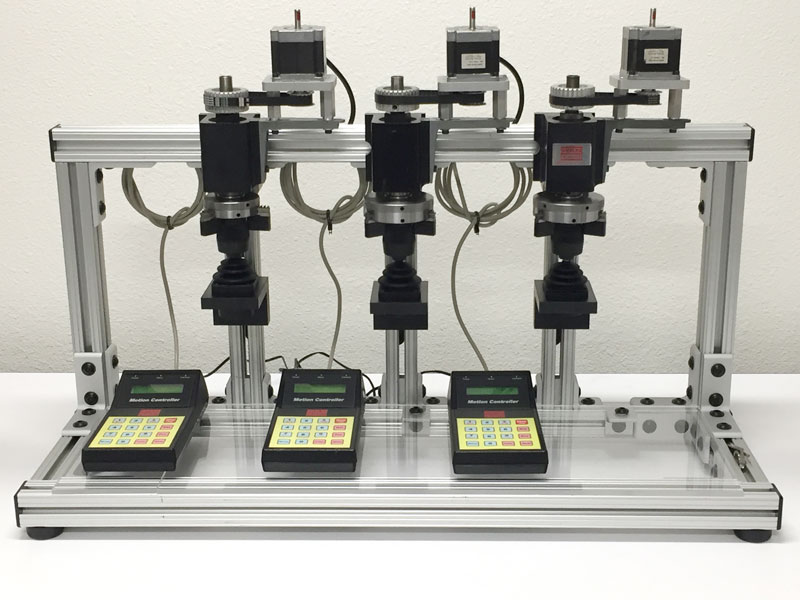

This test fixture was designed and built by APEM. (Click on the image for a larger view)

Sherline industrial customers use our products to test their equipment in a wide range of industries. This page shows how businesses use Sherline parts to create test equipment and gauges.

Take Your Project from Concept to Reality

If you have any questions about the feasibility of your proposed project or the capabilities of our equipment, call us at (800) 541-0735 or (760) 727-5857. The best time to call is Monday through Friday between 11 AM and 3 PM (Pacific). Please ask for Karl Rohlin or Charla Papp.

Click the "Play" button to watch the video.

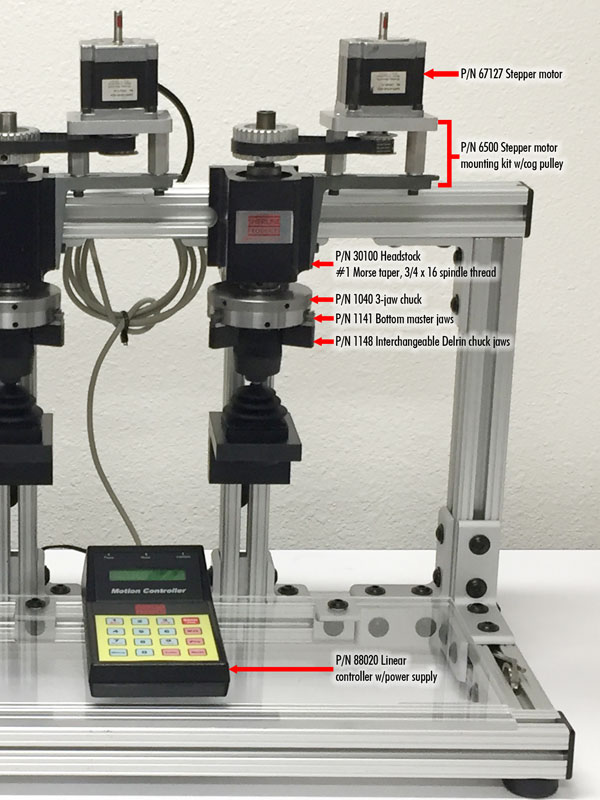

(Click on the image for a larger view)

Bench-Test Fixture

APEM uses Sherline products in the testing of their equipment. APEM manufactures a full line of switches, indicators, joysticks, and controls. The accompanying video shows Sherline equipment mounted on the box channel fixture they designed and built to bench test their joysticks. Sherline components that were used for this test fixture are stepper motors, headstocks, chucks, and linear controllers.

• P/N 33010 3/4 x 16 Headstock
• P/N 1040 3.1", 3-jaw chuck
• P/N 1141 Bottom master jaws
• P/N 1148 Interchangeable, Delrin chuck jaws
• P/N 6500 Sherline stepper-motor mounting kit
• P/N 67127 Stepper motor
• P/N 88020 Linear controller

Photos and video courtesy of APEM.
